End Mills - Dental Tools
According to functions, it can be roughly divided into three types: cutting zirconia and EMAX PMMA
Material: Mostly tungsten carbide
Coating: DLC/RC/DC
Product advantages: high-quality cutting performance.
Best fit at the highest possible surface quality
In order to achieve maximum economical use, the tools are consistently checked for service life and optimised within the system as part of the newly developed intelligent milling and grinding strategies.

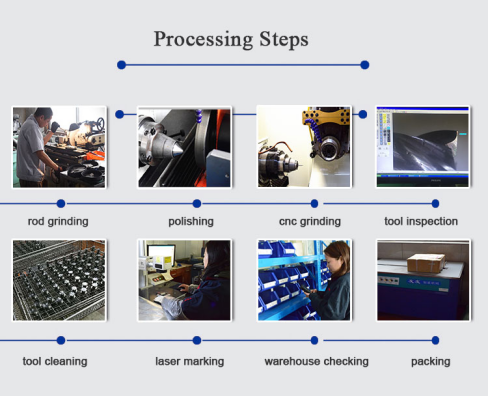

End Mills - Dental Tools Product production process:
End Mills - Dental Tools product specifications

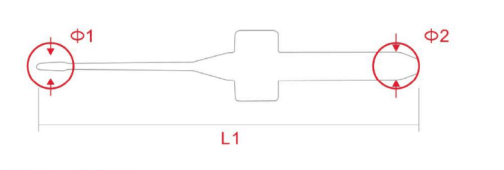

CADCAM System | Function | Coating | Shaft Φ2/mm | Total Length L1/mm | Effective Length | headmeter Size/Φ1mm | ||
Round | Flat | Toric | ||||||
Amann Girrbach | Milling Zirconia | DLC | Φ3mm | 47 | 2.5mm-18 , 2.0mm-16, | 2.5/1.0/0.6/0.3/ | 1.2/0.6 | / |
RC | Φ3mm | 47 | 2.5mm-18 , 2.0mm-16, | 2.5/1.0/0.6/0.3/2.0 | / | / | ||
DC | Φ3mm | 47 | 2.5mm-18 , 2.0mm-16, | 2.5/1.0/0.6/0.3/2.0 | / | / | ||
Milling Emax | DC(Emery coating） | Φ3mm | 44 | / | 1.8/1.4/1.0/0.4 | 2.2 | / | |
Miling Metal | / | / | / | / | 2.0/1.0 | / | / | |
Miling PMMA | / | Φ3mm | 47 | 2.5mm-18 , 2.0mm-16, | 2.5/1.0/0.6/0.3/2.0 | 1.2/0.6 | / | |
