Overview

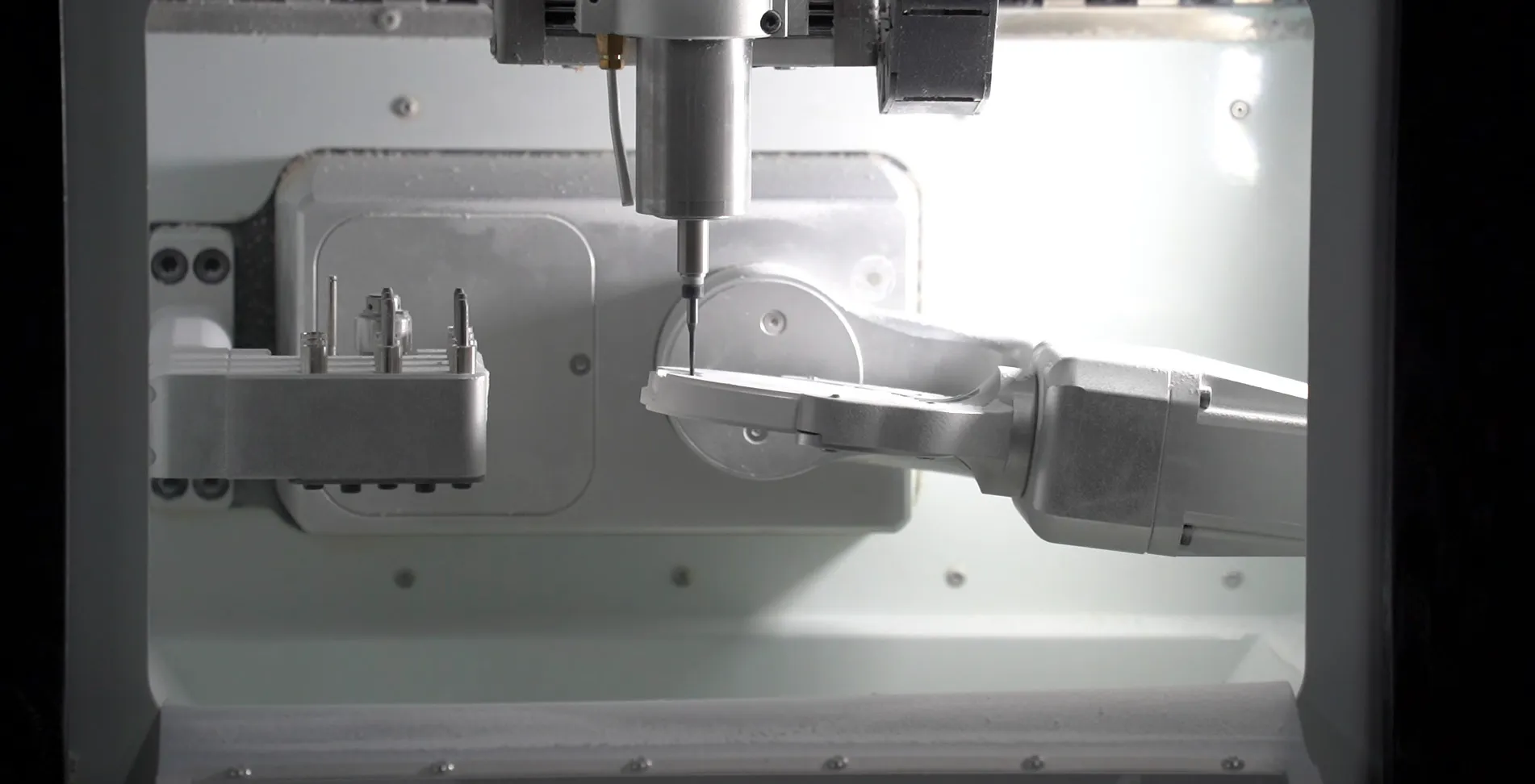

The HONCHON 5-Axis Dry Dental Milling Machine is a high-precision, efficient, and reliable digital processing solution designed for dental laboratories and clinics. This state-of-the-art machine adopts advanced 5-axis technology, enabling the processing of a wide range of materials such as zirconia blocks, PMMA blocks, wax blocks, and PEEK blocks.
Key Features
Precision & High-Speed Processing: The machine achieves fast, high-precision milling with exceptional accuracy, enhancing productivity.
Material Compatibility: Supports a variety of materials, including zirconia, PMMA, wax, resin, and composite materials.
Efficient Design: Designed to integrate seamlessly with digital production processes, allowing for CAD drawing generation followed by fast CNC processing.
Technical Specifications
| Parameter | Details |
|---|---|
| Weight (Net) | 162 kg |
| Weight (Gross) | 186 kg |
| Rotational Axis Angles | A-axis: ±360°, B-axis: +35° to -91° |
| Total Power | 1.5 kW |
| Spindle Speed | 0-60,000 RPM |

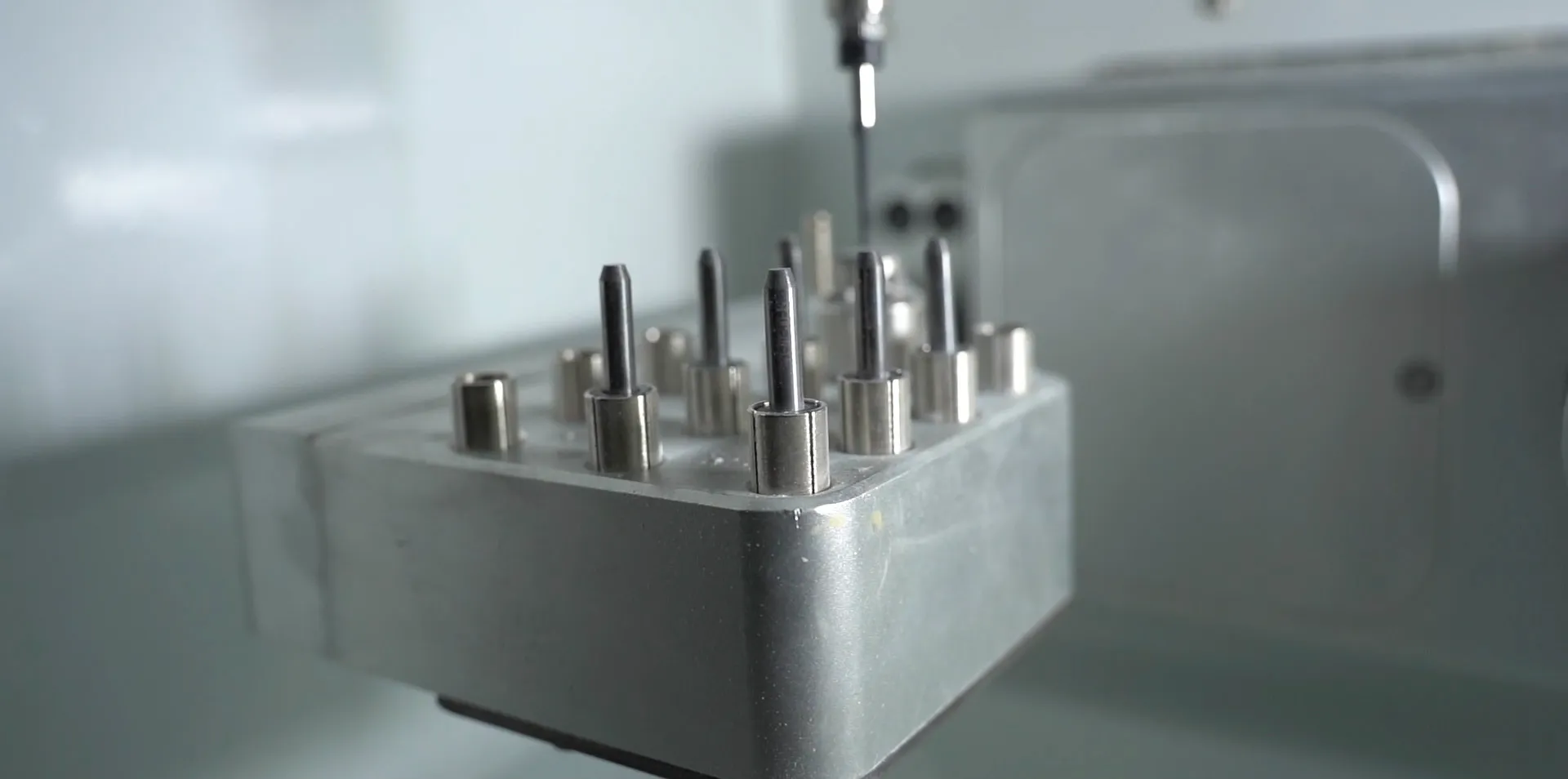

| Tool Capacity | 10 tools (4mm diameter) |
| Material Compatibility | Zirconia, Wax, PMMA, Resin, Composite |
| Processing Time | Single Crown: 15 minutes |
| Processing Method | Five-axis linkage, Dry Milling |
Advantages of the HONCHON 5-Axis Dry Milling Machine
1. Efficiency

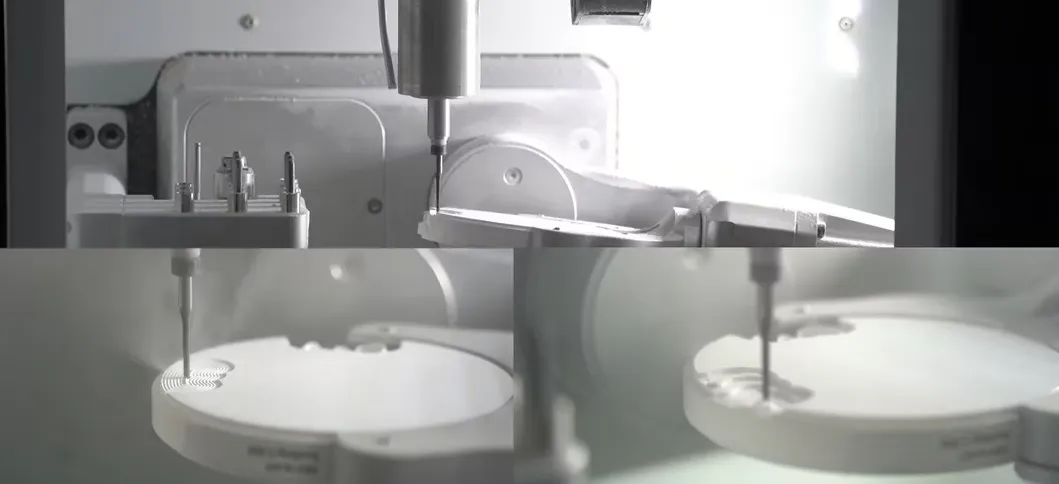

The HONCHON 5-Axis dry milling machine processes restorations quickly, with a single crown taking as little as 12 minutes—about the time it takes to drink a cup of coffee. This makes it an ideal solution for high-volume dental labs.
2. High Precision
Thanks to advanced precision machining technology, this milling machine ensures high machining accuracy, producing fine and intricate restorations with minimal material waste.
3. User-Friendly Design

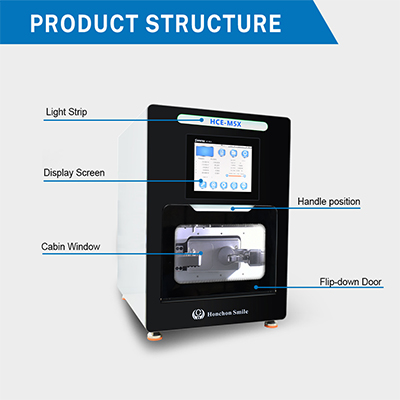

The intuitive touchscreen interface is available in multiple languages, displaying real-time processing updates and alerts, ensuring a smooth operation experience.
4. Versatile Material Processing
The HONCHON 5-Axis machine can efficiently mill a variety of materials, such as zirconia, PMMA, wax, and PEEK, offering flexibility for dental labs.
5. Reliability & Durability
Built with high-quality components and German craftsmanship, this machine ensures long-term reliability, capable of continuous operation. It is backed by a 1-year warranty and lifetime technical support.
Innovative Features

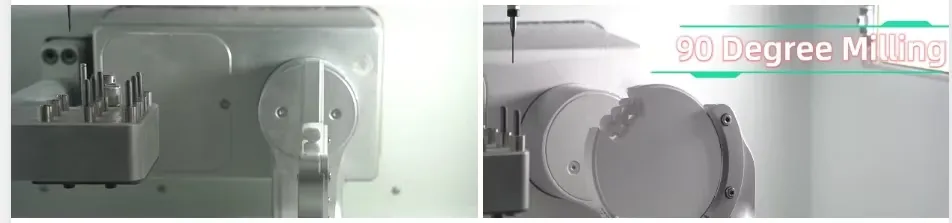

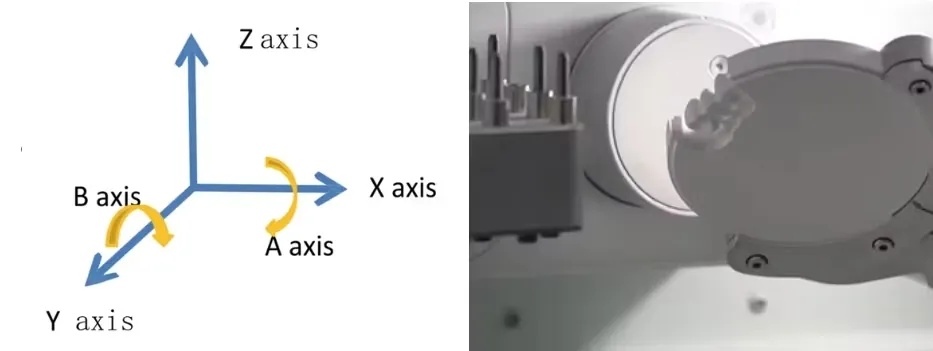

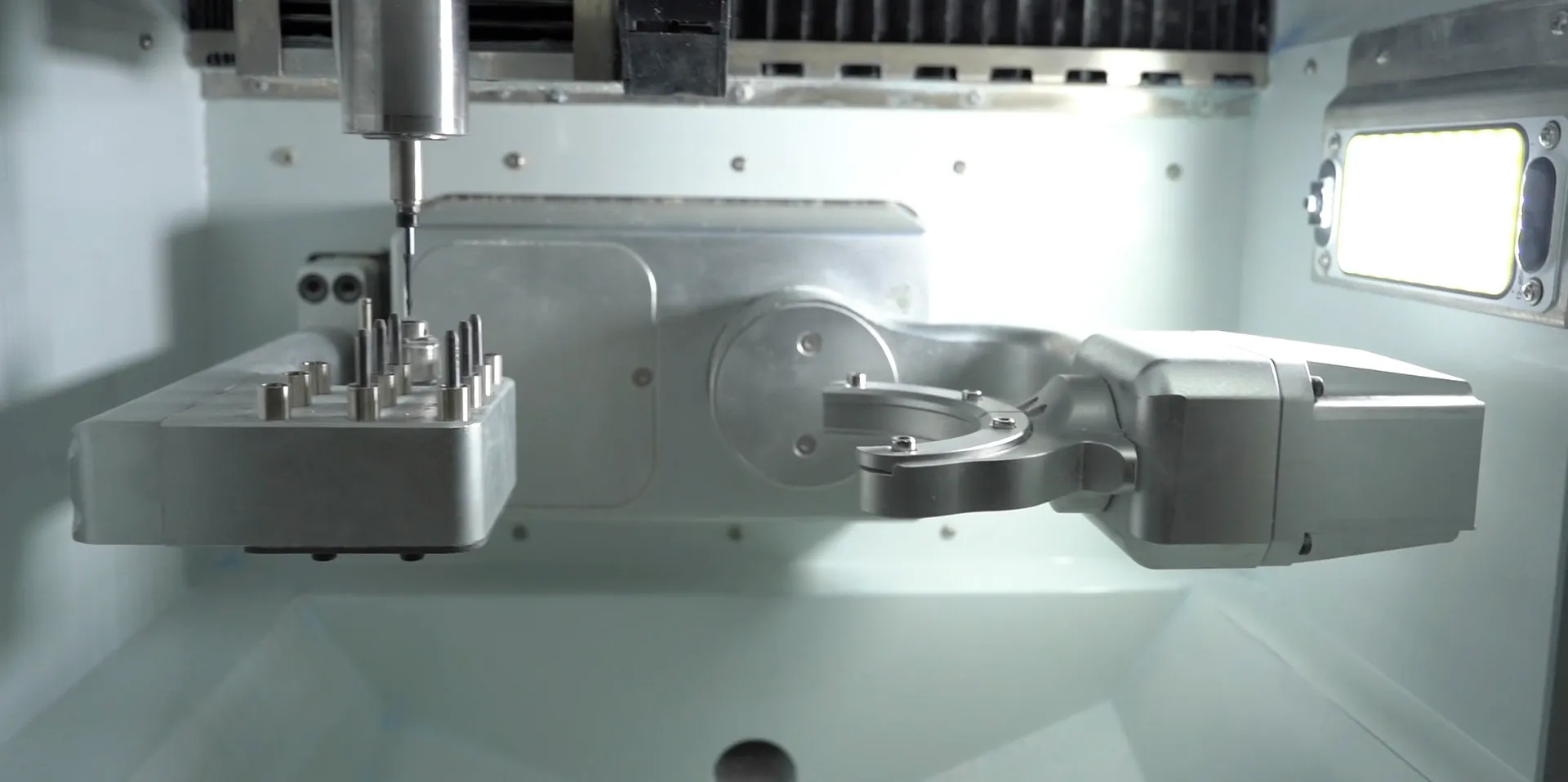

Upgraded B-Axis Swing Range: The B-axis range of +35° to -91° and the A-axis ±360° allows for precise milling of large dental arches, undercuts, and complex restorations, achieving angles other machines can't handle.

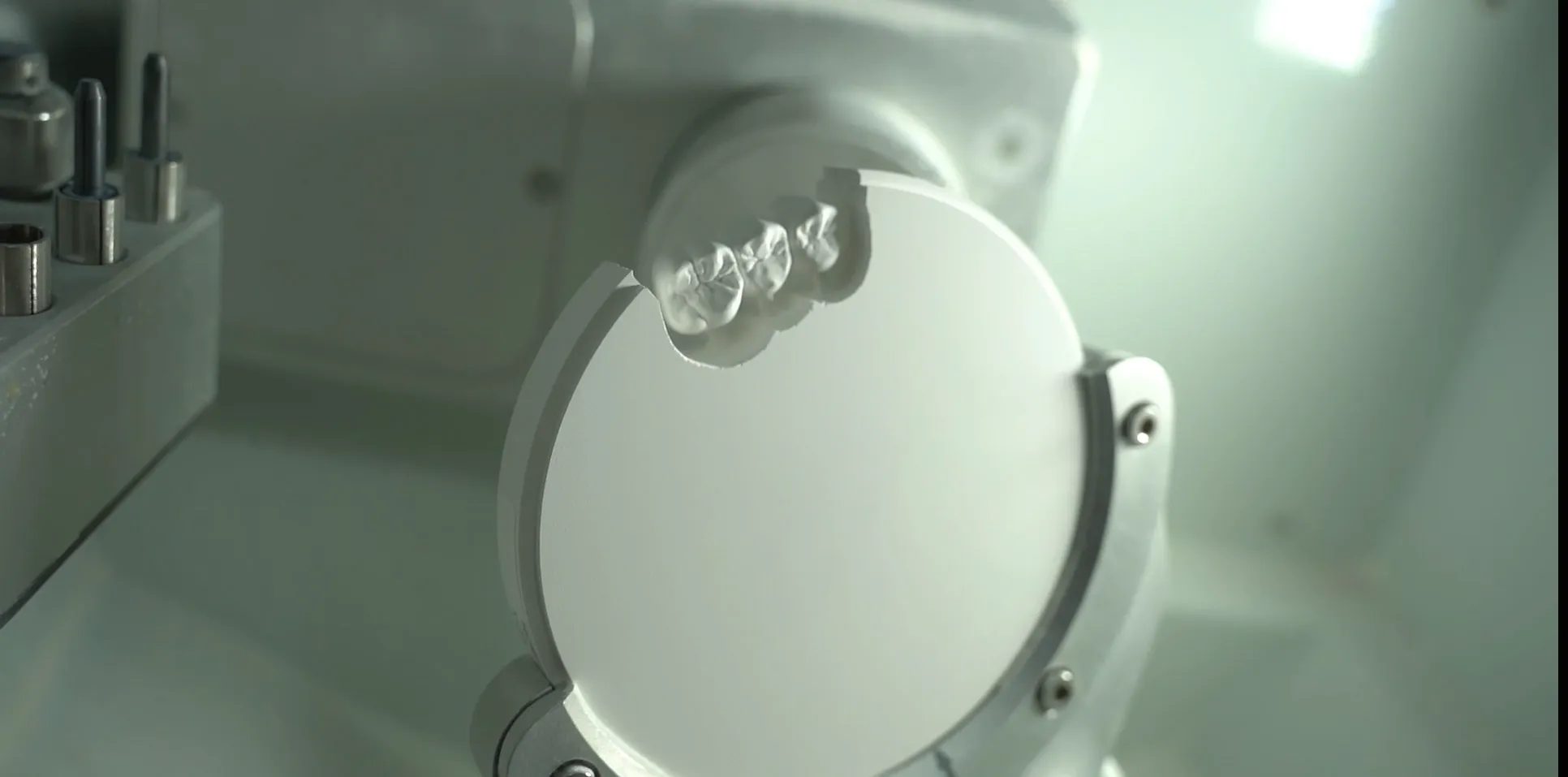

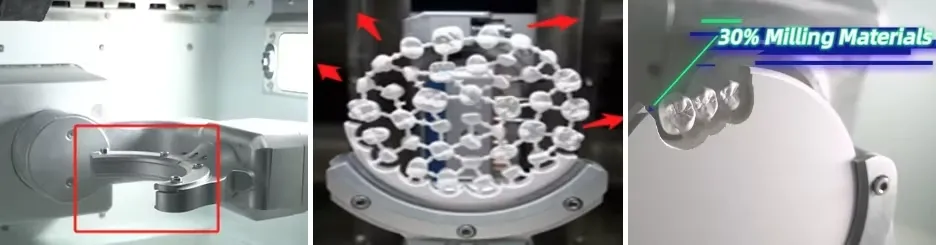

C-Shape Holder Design: The C-type fixture improves material utilization by 30%, reducing waste and improving efficiency.

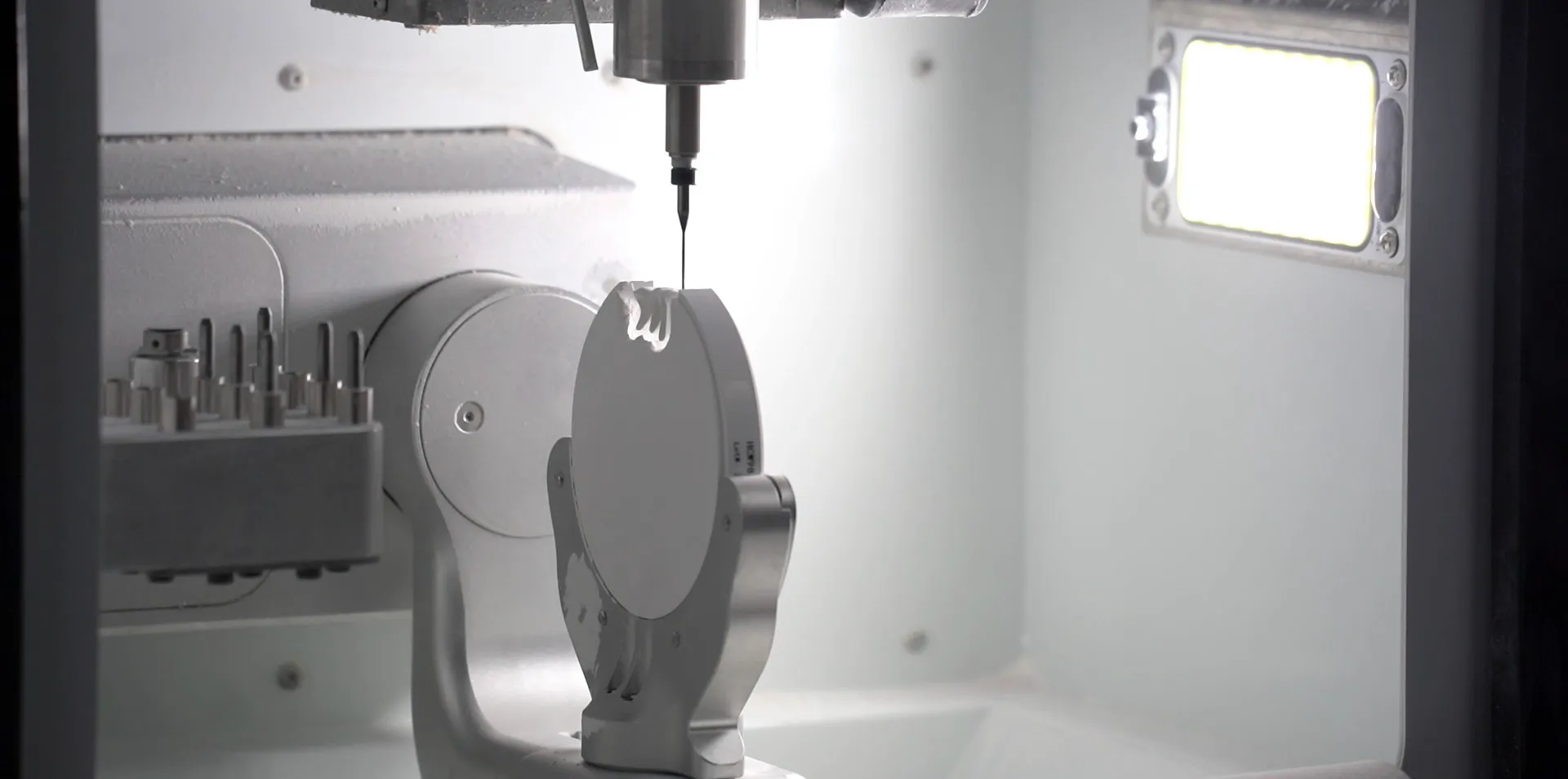

High-Speed Spindle: The spindle operates up to 60,000 RPM, ensuring exceptional cutting efficiency for intricate designs.
Intelligent Memory System: The integrated system ensures that operations continue smoothly in case of power outages or interruptions.
Installation Requirements
To ensure optimal performance, the HONCHON 5-Axis Milling Machine requires:
Stable Voltage: 220-230V
Stable Air Pressure: ≥6.0 bar
Operating Temperature: 15-35°C
Relative Humidity: <80%
Working Air Pressure: 4.5-7.5 bar (oil-free)
Software Compatibility: Compatible with Hyperdent and Millbox CAM software for seamless integration with your digital workflow.
Parts List
| No. | Product Name | Specification | Quantity |
|---|---|---|---|
| 1 | HCE-M5X Milling Machine | 530*650*760mm | 1 |
| 2 | Dust Suction Air Pipe | 2m | 1 |
| 3 | 8mm Air Pipe | 5m | 1 |
| 4 | Pressure Regulator Filter | AFR2000 | 1 |
| 5 | Tool Burs | Zirconia and PMMA | 7 |
Customer Support and Training
We provide comprehensive support to ensure you maximize the use of the HONCHON 5-Axis Milling Machine:
Training: Full operational and maintenance training to ensure efficient use.
Technical Support: Lifetime technical assistance for any issues or queries.
Custom Solutions: Tailored solutions to fit your unique requirements, backed by our international sales team.
FAQ
Who is HONCHON Smile?
HONCHON Smile is a leading manufacturer in the dental sector with over 14 years of experience in dental materials production. We specialize in zirconia and other advanced dental materials.
How do you guarantee quality?
Our products are strictly controlled under an ISO certified quality system, with pre-production samples and final inspections.
What products do you offer?
We offer zirconia blanks, PMMA, wax, dental milling burs, and other dental supplies.
Why should I buy from you?
We are a direct manufacturer offering competitive prices, custom solutions, and high-quality products, backed by ISO certification.
Can I print my own logo on the products?
Yes, we offer OEM/ODM services and can print your logo or design on products.
What payment methods are accepted?
We accept PayPal, T/T, Bank Transfer, Western Union, and other online payment methods.
Packaging & Delivery
We use DHL, UPS, and FedEx to deliver your products quickly and safely. The machines are packed securely using professional, eco-friendly packaging to ensure the safety of your goods during transit.
Contact HONCHON Smile Today
If you’re looking for a high-precision, reliable dental milling machine, the HONCHON 5-Axis Milling Machine is the perfect solution for your dental lab. Reach out today to learn more about our products, get a custom quote, or schedule a demo.
