1.Translucent Zirconia Physical Parameters
Color: White
Aesthetic: Super high translucent
Sintered Density………………6.0g/cm3
Bending Strength………………1000MPA
Light transmittance ………………46%
Sintering Temperature………………1450℃
2.Translucent Zirconia Feature
Suitable for full contour crown and bridge
Pefect match with HONCHON SHT 16 shade liquid
SHT material has been universally applied in the dentistry due to its remarkable quality.
3.Translucent Zirconia Recommended Indications
Inlay& Onlay & Partial crown
Coping
Posterior crown
Anterior crown
Full contour bridge≤14 unit
4. Available sizes of Translucent Zirconia
Openingsystem | Amann Girrbachsystem | ZirkonZahnsystem |
98*10mm | 89*71*10mm | 95*10mm |
98*12mm | 89*71*12mm | 95*12mm |
98*14mm | 89*71*14mm | 95*14mm |
98*16mm | 89*71*16mm | 95*16mm |
98*18mm | 89*71*18mm | 95*18mm |
98*20mm | 89*71*20mm | 95*20mm |
98*22mm | 89*71*22mm | 95*22mm |
98*25mm | 89*71*25mm | 95*25mm |
5.Sintering curve of Translucent Zirconia
| Sintering Curve | ||||
| Sintering step | Start Temperature(℃) | End Temperature(℃) | Time(Min) | Rate(℃/Min) |
| Step 1 | 20 | 300 | 30 | 9.3 |
| Step 2 | 300 | 1000 | 60 | 11.7 |
| Step 3 | 1000 | 1450 | 180 | 2.5 |
| Step 4 | 1450 | 1450 | 120 | 0.0 |
| Step 5 | 1450 | 700 | 120 | -6.3 |
| Step 6 | 700 | 20 | 121 | -5.6 |

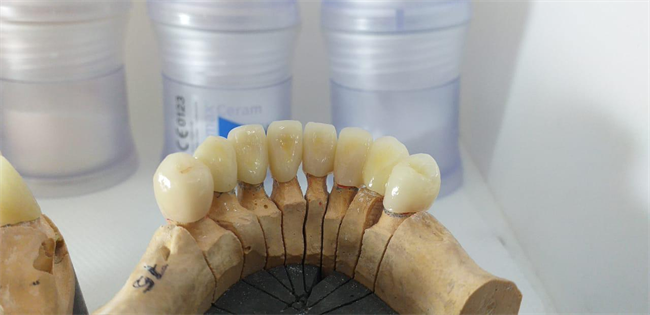

Cases & Feedback
