CAD CAM PEEK  BLANK
CAD CAM PEEK  BLANK

CAD CAM PEEK BLANK

Application
Dental Use
Diameter
98mm
Thickness
12/14/16/18/20mm
Color
Natural, White, Yellow, Pink

Introduction to dental PEEK blanks


dental PEEK blank (polyether ether ketone) is designed for CAD/CAM digital restorations, combining lightness (1/7 the density of cobalt-chromium alloys) and moderate hardness, which protects the natural dentition and avoids the risk of metal allergies. Its dense, smooth surface significantly inhibits plaque adhesion, facilitates cleaning and maintenance, and is an ideal biomaterial for restorative dentistry because of its precision molding and rapid clinical adaptation in conjunction with digital processing.


Parameters of dental PEEK blanks


MaterialDensity (g/cm³)
Bending Strength (MPa)Bending Modulus (GPa)
PEEK1.321.636
Human Skeleton1.81.4917
Zirconium Dioxide (Ceramic)61200210
Tetric Ceram1.2752.8

Recommended indications for dental PEEK blanks

  • Dental crown and bridge

  • Gingival former

  • Provisional and permanent abutment

  • Attachment repair

  • Partial denture

  • Oral splints

  • Inlay bridge

  • Telescope crown

  • Denture base

  • Healing cap


Benefits of dental PEEK blanks

  • Exceptional strength while maintaining a lightweight profile

  • Outstanding resistance to wear and corrosion

  • Radiolucent under X-ray imaging

  • Highly biocompatible, ideal for use in implants

  • Fully compatible with open CAD/CAM systems and Zirkonzahn equipment

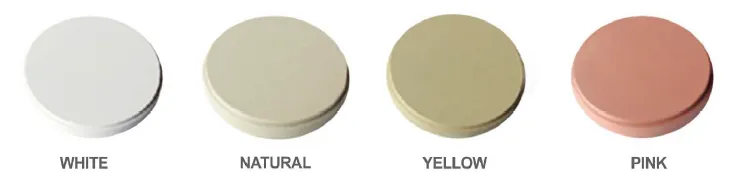

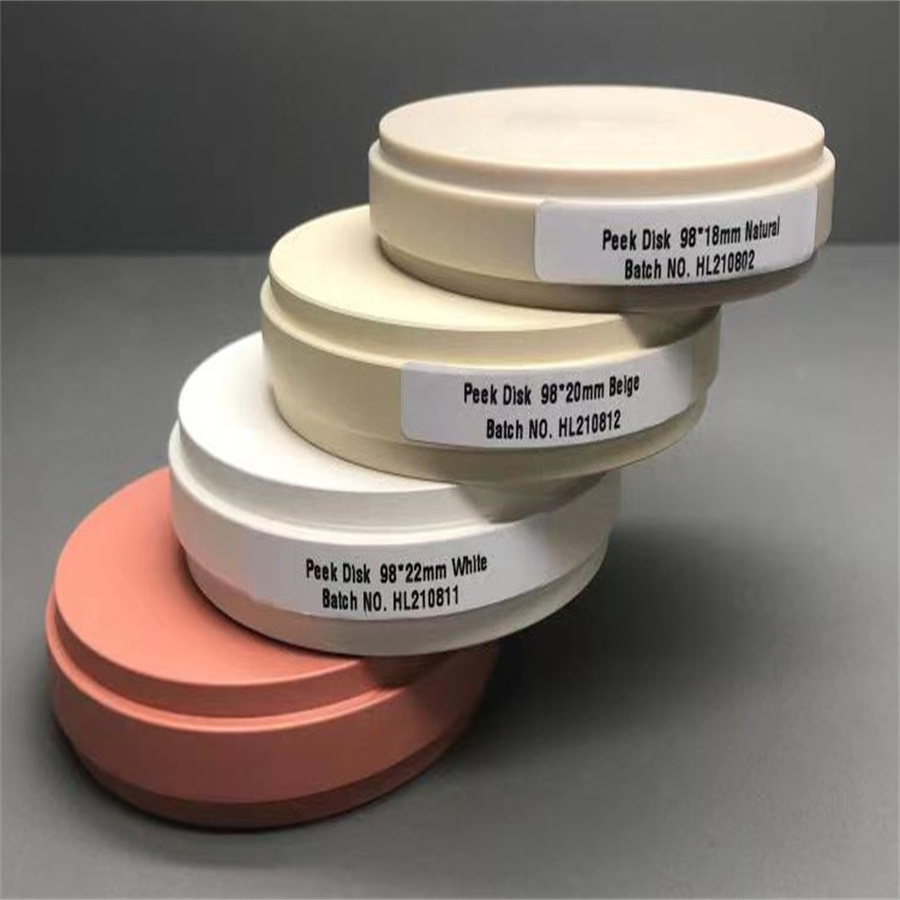

Available colors and sizes of dental PEEK blanks:


systemsizes
colors
Open CADCAM system98*14mm 98*16mm 98*18mm 98*20mm 98*22mm 98*25mm 98*30mm

white Nature  yellow  pink

Zirkonzahn system95*14mm 95*16mm 95*18mm 95*20mm 95*22mm 95*25mm 95*30mmwhite Nature  yellow  pink
Amann girhach system 92*75*14mm 92*75*16mm 92*75*18mm 92*75*20mm 92*75*22mm 92*75*25mm 92*75*30mmNature

CAD CAM PEEK  BLANK(图1)

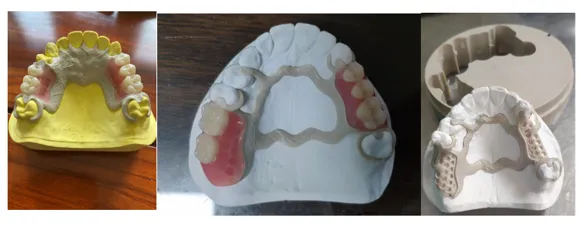

Cases & Feedback
