Grade 2 or  Grade 5 Titanium metal blank
Grade 2 or  Grade 5 Titanium metal blank

Grade 2 or Grade 5 Titanium metal blank

Application
Implant/Abutment
Size
10mm,12mm,14mm,16mm,18mm,20mm,25mm
Material
Titanium Gr2, Gr5
Titanium%
≥99.6%
Impurity%
0.02(%)
Standard
ASTM B381; ASTM F67; ASTM F136
Diameter
φ98mm/98.5mm

1.product Introduction:


Honchon Smile offers Grade 2 and Grade 5 Titanium metal blanks that are well-suited for fabricating crowns, bridges, and implants. These blanks exhibit exceptional biocompatibility and purity, with no reported cases of allergic reactions to metals. Renowned for their bio-compatibility, lightweight nature, and purity, they are considered the top choice for dental applications in the current market. Whether using Grade 2 or Grade 5 Titanium metal blanks, they are both ideal materials for CAD/CAM guided milling processes.

2.product Parameter (specification)


Titanium Gr5

Chemical Composition

Al(%)

V(%)

C(%)

H(%)

O(%)

Fe(%)

N(%)

Ti(%)

Others

Date

5.5-6.5

3.5-4.5

Max 0.08

Max 0.012

Max 0.13

Max 0.25

Max 0.05

Balance

Each(Max)<0.1
Total(Max)<0.4

Mechanical Properties

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation
Min%

Reduction of Area Min%


Date

>860

>795

>20

>25



Titanium Gr2

Chemical Composition

C(%)

H(%)

O(%)

Fe(%)

N(%)

Ti(%)

Others

Date

Max 0.08

Max 0.010

Max 0.25

Max 0.3

Max 0.03

Balance

Each(Max)<0.1
Total(Max)<0.4

Mechanical Properties

Tensile Strength

(Mpa)

Yield Strength

(Mpa)

Elongation
Min%

Reduction of Area Min%


Date

>345

>275

>20

>30


3.Product application


Our Titanium blanks are available in Grade 2 and Grade 5, ensuring consistent quality with an extremely fine microstructure suitable for crown and bridge techniques.

Grade 2 Titanium is primarily utilized for crowns and bridges, while Grade 5 is suitable for crowns, bridges, and implants. Grade 5 Titanium offers ample strength and biocompatible properties, enabling the recreation of dental structures while causing minimal wear on milling tools.

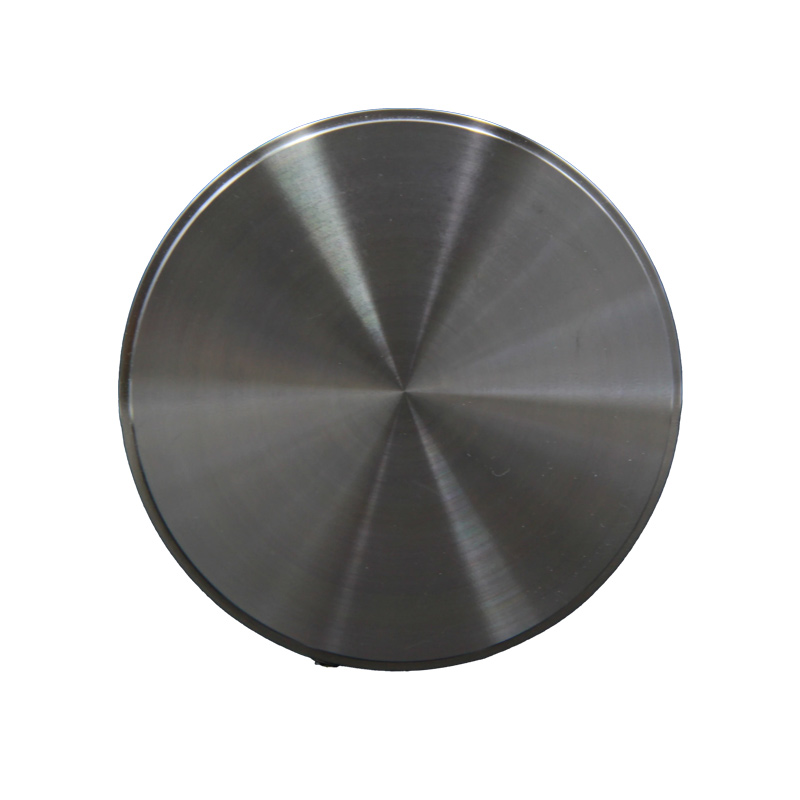

Grade 2 or  Grade 5 Titanium metal blank(图1)

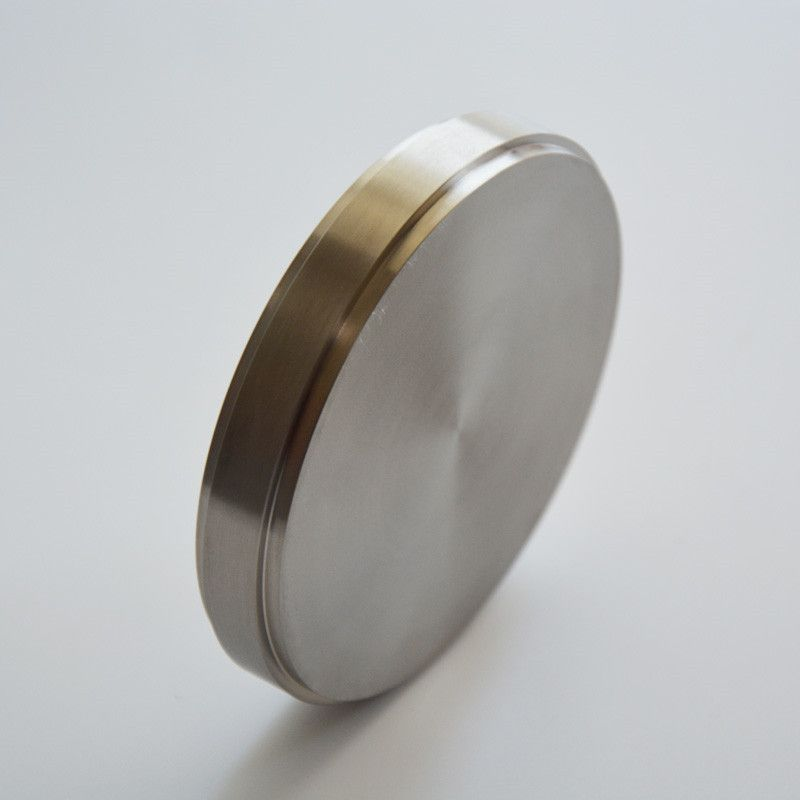

Grade 2 or  Grade 5 Titanium metal blank(图2)


4.Advantages:


Uniform Grain Size - Facilitating easy milling and usage.

High Purity, High Temperature Resistance - Capable of withstanding prolonged use at temperatures of 600°C or higher.

Superior Performance - Exhibiting excellent corrosion resistance and long-term durability.

Smooth Finish - Free from scratches, showcasing a beautiful metal luster, easy to clean, and resistant to food debris accumulation.
