How to choose the right dental milling burs？

In CAD/CAM dentistry, the milling bur is the final tool that transfers digital design into a physical restoration. Although small in size, a bur’s geometry, coating, carbide quality, and compatibility with specific materials will directly determine surface finish, accuracy, and tool longevity. For technicians aiming to stabilize production quality and reduce tool consumption costs, choosing the correct bur is a technical decision—not a commercial one.

This guide explains the engineering considerations behind bur selection and offers practical criteria for zirconia, metals, PMMA, wax, and glass-ceramics.

1. Material–Tool Compatibility

Each dental material behaves differently during subtractive machining. Understanding its mechanical properties helps determine the correct bur type.

Zirconia (Y-TZP)

• Extremely abrasive

• Requires high-hardness carbide + DLC/DC/RC coating

• Coating reduces friction, prevents micro-chipping, and stabilizes tool wear.

• A poor-quality bur can cause marginal chipping, edge fractures, or inaccurate fits.



Chrome Cobalt (Cr-Co)

• High strength + high heat generation

• Requires solid carbide metal burs with optimized flute design

• Needs higher rigidity to prevent step lines and vibration.



PMMA / Wax

• Soft thermoplastics

• Use uncoated carbide burs

• Too aggressive a cutting edge may melt PMMA and cause buildup.



Glass-Ceramics / Lithium Disilicate

• Fragile and prone to micro-cracks

• Requires diamond-coated burs with controlled cutting pressure.



Selecting a bur that matches material hardness, elasticity, and thermal characteristics is fundamental to achieving clean margins and consistent milling performance.

2. Shank Diameter and Machine Compatibility

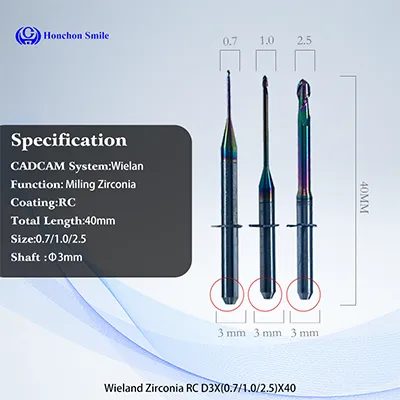

Every milling machine specifies a fixed shank diameter (e.g., Ø3 mm, Ø4 mm, Ø6 mm).
A bur that does not match the machine’s collet tolerance can cause:

• Run-out

• Vibration

• Excessive tool wear

• Dimensional inaccuracies

Always verify machine specifications (Roland, Imes-Icore, VHF, Amann Girrbach, Zirkonzahn, open systems, etc.) before selecting burs.

3. Cutting Diameter and Geometry

The diameter of the cutting head affects accuracy and material removal rate.

Large-diameter burs (2.0–2.5 mm)

• Efficient bulk reduction

• Used for roughing zirconia and metal

Medium-diameter burs (1.0 mm)

• General-purpose finishing

• Balances detail and durability

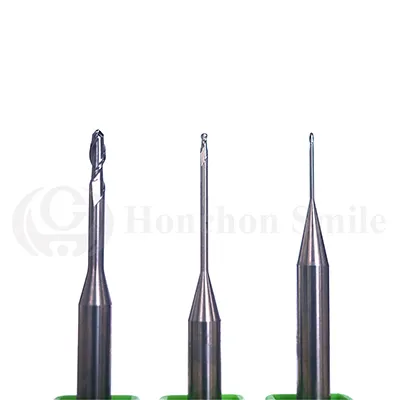

Small-diameter burs (0.6 mm or 0.3 mm)

• High-precision anatomy

• Required for fissures, embrasures, and intricate morphology

• Sensitive to machine rigidity and toolpath strategy

A properly planned toolset transitions smoothly through roughing → semi-finishing → finishing.

4. Flute Design and Chip Evacuation

In tool engineering, flute geometry determines chip formation.

• Spiral flute: fast chip evacuation, stable cutting force

• Straight flute: rigid but slower chip removal

• Polished flute: reduces heat in PMMA and wax

• Open flute pocket: prevents chip packing in zirconia

Incorrect flute design may cause burning, vibration, or visible milling lines.

5. Carbide Quality and Coating Technology

High-performance dental burs rely on:

1) Carbide grain size

Fine-grain tungsten carbide provides:

• Higher hardness

• Better edge retention

• Resistance to micro-fractures

2) Coating type

Each coating has different friction coefficients:

• DLC (Diamond-Like Carbon): best for zirconia, high wear resistance

• DC / RC coatings: stable, economical, good for daily zirconia milling

• Uncoated: ideal for PMMA and wax

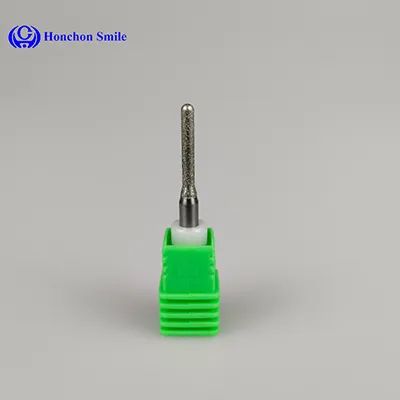

• Diamond-coated: required for lithium disilicate and glass-ceramics

Engineering-grade coatings significantly extend tool life and improve marginal precision.

6. Tool Life, Cost Efficiency, and Performance Stability

The cheapest bur may not be the most economical.
Tool cost must be evaluated against:

• Number of units milled

• Surface smoothness

• Marginal accuracy

• Reduction of re-polishing or re-milling

• Avoiding internal fractures or fitting errors

A stable and predictable bur reduces technician workload, machine strain, and remakes.

Conclusion

Choosing the right dental milling burs is a technical decision that involves understanding material behavior, machine compatibility, tool geometry, carbide quality, and coating technologies. By selecting burs engineered for specific materials and milling strategies, dental labs can achieve:

• Higher precision

• Longer tool life

• More consistent restorations

• Lower overall production cost

A well-selected bur is not just a tool—it is a critical component of a reliable CAD/CAM workflow.
